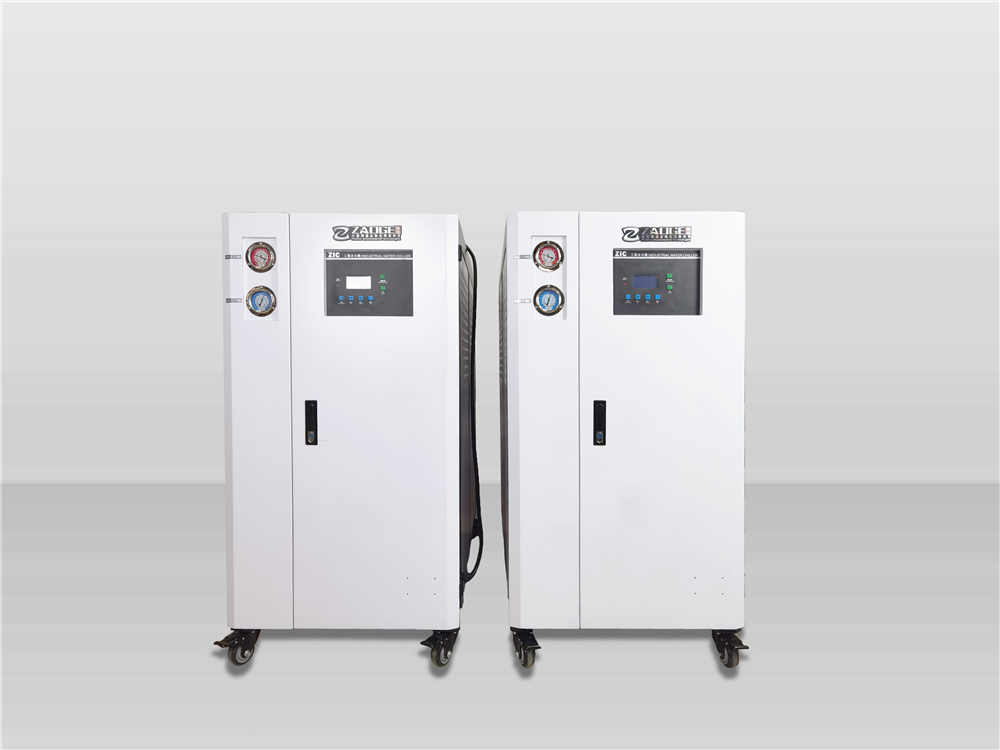

Water-Cooled Industrial Chiller

Features:

● The machine adopts high-quality imported compressors and water pumps, which are safe, quiet, energy-saving, and durable.
● The machine uses a fully computerized temperature controller, with simple operation and accurate control of water temperature within ±3℃ to ±5℃.
● The condenser and evaporator are uniquely designed for better heat transfer efficiency.
● The machine is equipped with protection features such as overcurrent protection, high and low voltage control, and electronic time-delay safety device. In case of a malfunction, it will promptly issue an alarm and display the cause of the failure.
● The machine has a built-in stainless steel insulated water tank, which is easy to clean.
● The machine has reverse phase and under-voltage protection, as well as anti-freezing protection.
● The ultra-low temperature type cold water machine can reach below -15℃.
● This series of cold water machines can be customized to be resistant to acid and alkali.

Send email to us Inquiry Now

Product Detail

Product Tags

Description

A water-cooled industrial chiller is a type of refrigeration equipment that uses water as a cooling medium to remove heat from process equipment or products. It can provide chilled water from 5℃ to 35℃, with a power range of 3HP to 50HP, and a cooling capacity between 7800 and 128500 Kcahr. It is commonly used to control the temperature of the production process to ensure product quality. Compared to air-cooled chillers, water-cooled chillers have better cooling efficiency and are suitable for high-temperature environments or large-scale cooling needs. However, they require separate cooling towers and water circulation systems, which may increase installation and maintenance costs.

Description

More Details

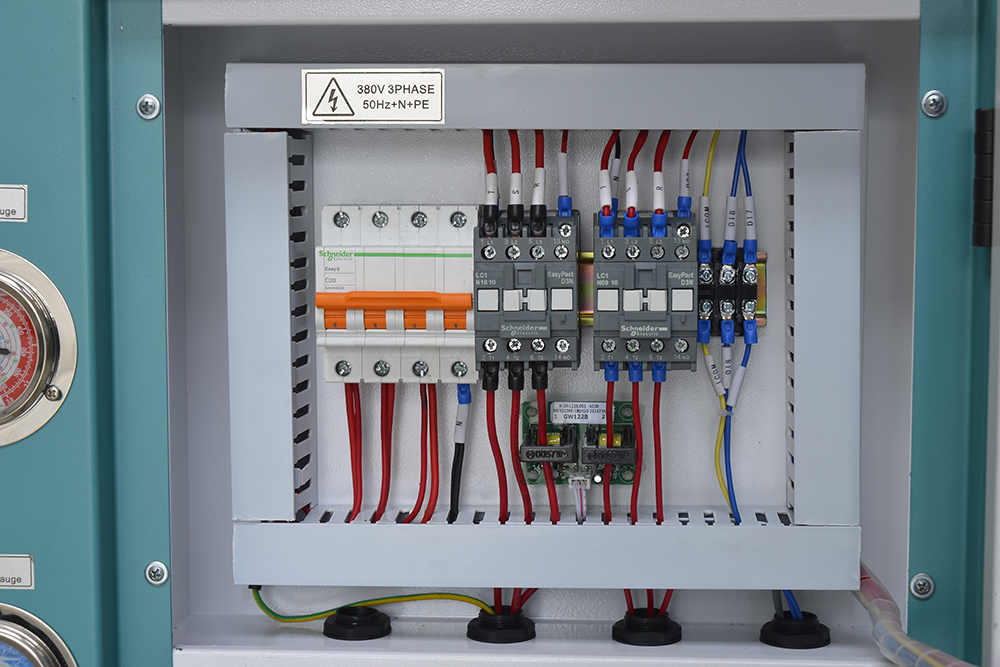

Safety Devices

This machine is equipped with multiple safety protection devices, including overload protection, overcurrent protection, high and low voltage protection, temperature protection, cooling water flow protection, compressor protection, and insulation protection. These protection devices can effectively ensure the safety and reliability of the industrial chiller and ensure the normal operation of the production process. Regular maintenance is required when using an industrial chiller to ensure its normal operation and high efficiency.

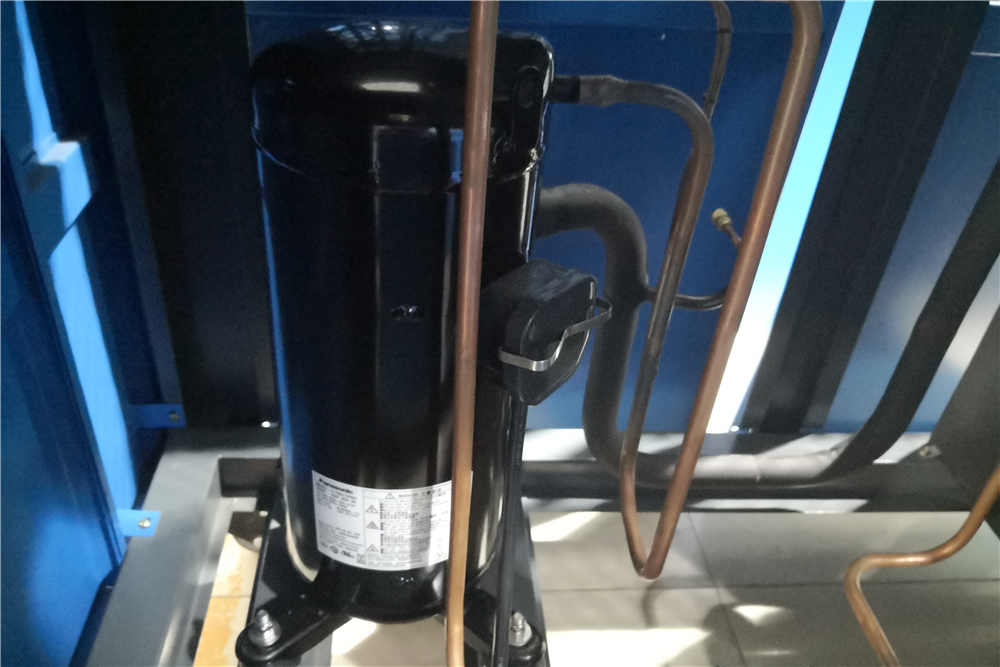

Compressors

Panasonic compressors are an excellent compressor type commonly used in industrial chillers. They are highly efficient, energy-saving, low-noise, low-vibration, and highly reliable, providing stable and reliable cooling and refrigeration services for industrial production. At the same time, the simple and easy-to-maintain structure of Panasonic compressors reduces maintenance and replacement costs.

Compressors

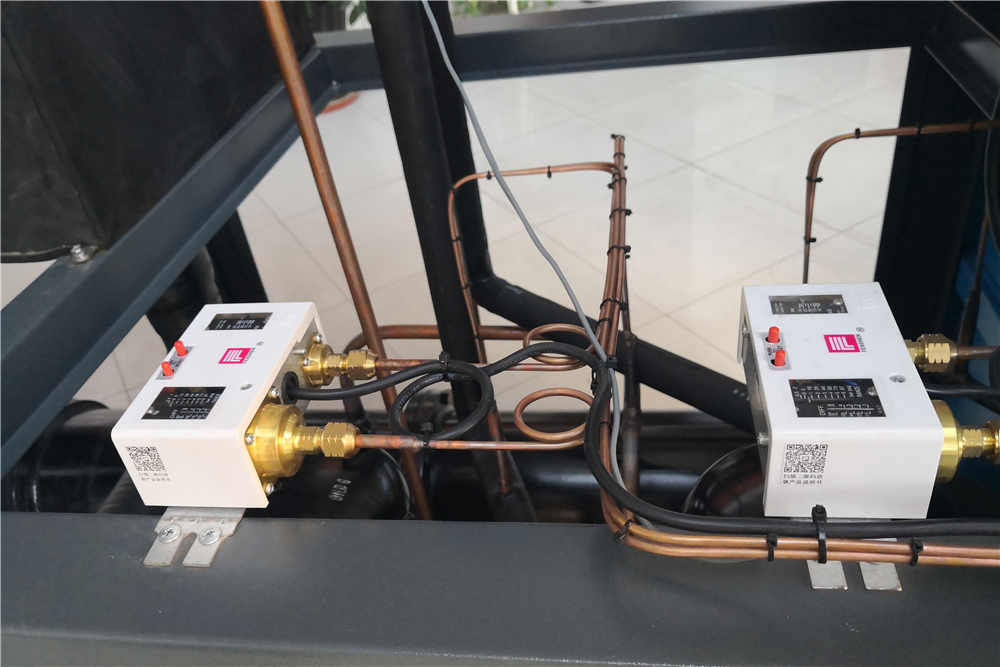

High-low Pressure Switch

Industrial chiller water pipes require corrosion resistance, high-pressure resistance, and low-temperature resistance. The high and low-pressure switch is a common safety protection device that monitors refrigerant pressure changes to prevent equipment damage. Regular inspection and maintenance of water pipes and the high and low-pressure switch are important for ensuring the chiller's normal operation and high efficiency.

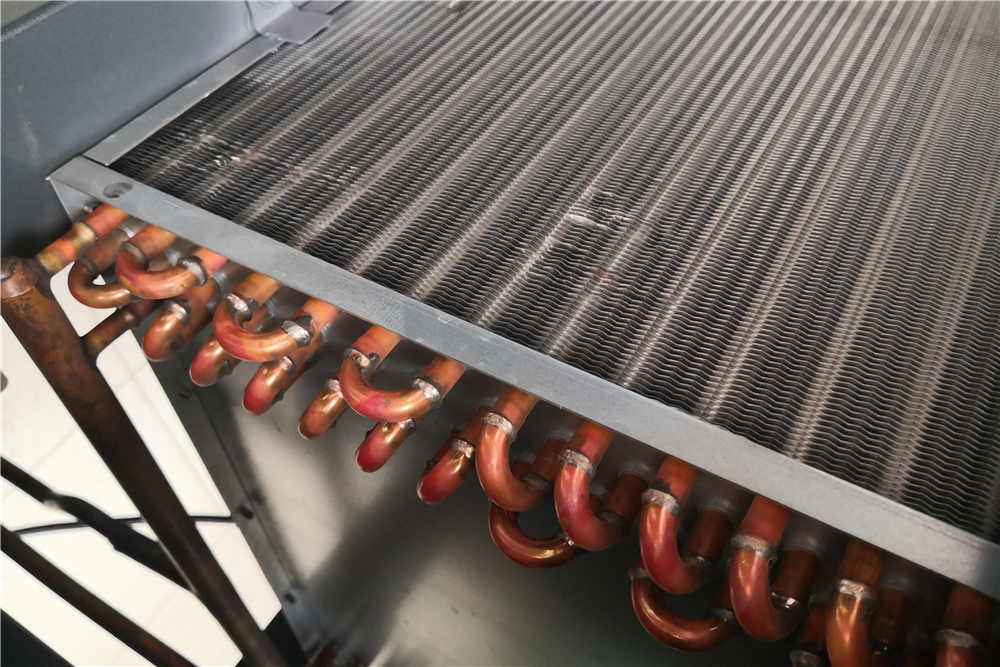

Evaporator

The evaporator of an industrial chiller is a key component for cooling and refrigeration. It uses efficient tubes and fins to quickly dissipate heat and lower the temperature while absorbing heat from the external environment through evaporation. The evaporator is easy to maintain, highly adaptable, and provides reliable cooling and refrigeration services for industrial production.

Evaporator

Chiller’s Applications

AC Power Supply Injection Molding

Automotive Parts Injection Molding

Communications Electronics Products

Cosmetic Bottleswatering Cansplastic Condiment Bottles

Household Electrical Appliances

Injection molded for Helmets and suitcases

Medical And Cosmetic Applications

Pump Dispenser

Specifications

item parameter mode			ZG-FSC-05W	ZG-FSC-06W	ZG-FSC-08W	ZG-FSC-10W	ZG-FSC-15W	ZG-FSC-20W	ZG-FSC-25W	ZG-FSC-30W
refrigeration capacity	KW		13.5	19.08	15.56	31.41	38.79	51.12	62.82	77.58
			11607	16405	21976	27006	33352	43943	54013	66703
	output power	KW	3.3	4.5	6	7.5	11.25	15	18.75	22.5
	output power	HP	4.5	6	8	10	8.5	20	25	30
refrigerant			R22
compressor motor power			3.3	4.5	6	7.5	11.25	15	18.75	22.5
compressor motor power			4.5	6	8	10	15	20	25	30
cooling water flow			58	77	100	120	200	250	300	360
water pipe diameter			25	40	40	40	50	50	65	65
voltage			380V-400V3PHASE 50Hz-60Hz
water tank power			65	80	140	220	380	500	500	520
water pump power			0.37	0.75	0.75	0.75	1.5	1.5	2.25	3.75
water pump power			1/2	1	1	1	2	2	3	5
water pump flow rate			50-100	100-200	100-200	100-200	160-320	160-320	250-500	400-800
power consumption when in use			7	9	13	15	27	39	45	55
size			865.530.101	790.610.1160	1070.685.1210	1270.710.1270	1530.710.1780	1680.810.1930	1830.860.1900	1980.860.1950
net weight			125	170	240	320	570	680	780	920
