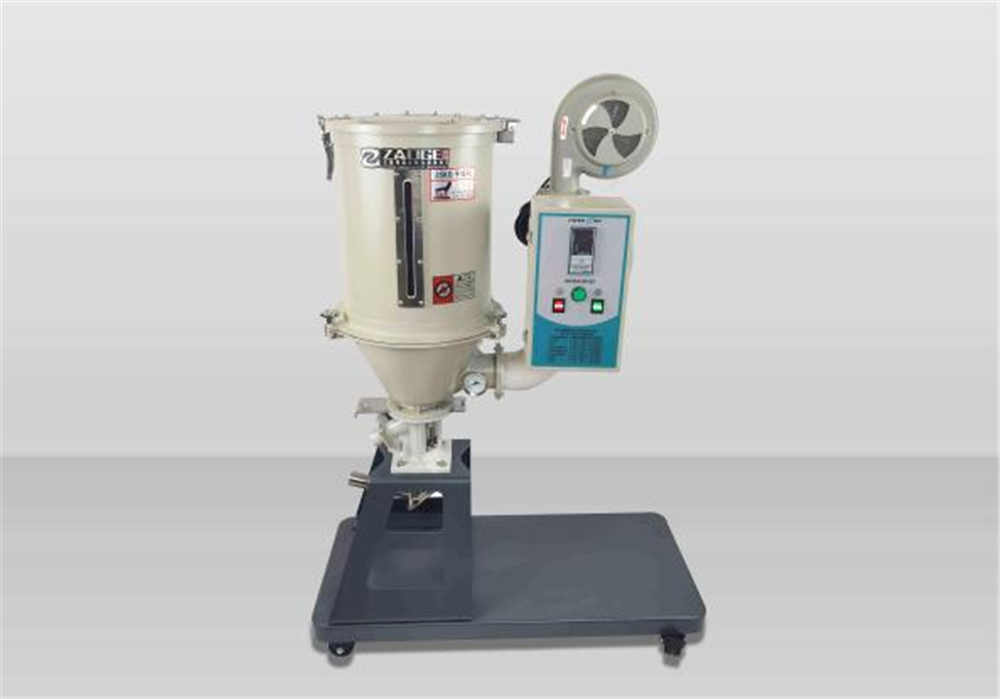

Drying Equipment for Plastics Processing

Features:

● Rapid and even heating with precise control.
● Equipped with over-temperature protection for safety and reliability.
● Can be equipped with a timer, hot air recycling, and a stand.

Send email to us Inquiry Now

Product Detail

Product Tags

Description

This product has several nble features, including rapid and uniform heating with precise control, as well as a built-in over-temperature protection system for safety and reliability. Additionally, it can be used in conjunction with accessories such as a timer, hot air recirculation, and a stand to enhance flexibility andota convenience. Overall, this product is an efficient, precise, safe, and versatile heating device that can quickly and uniformly heat materials while ensuring user safety and satisfaction through its various features and accessories.

Description

More Details

Heating Tube

The equipment adopts a high-performance hot air diffusion device that uniformly and evenly distributes hot air to maintain a consistent drying temperature for plastic materials, ultimately improving drying efficiency.

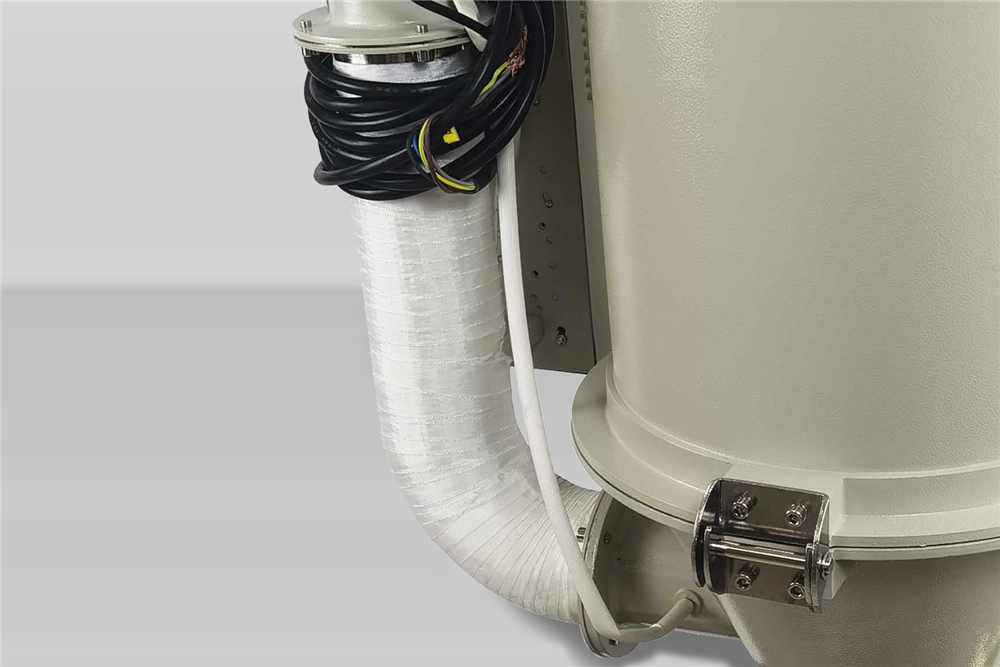

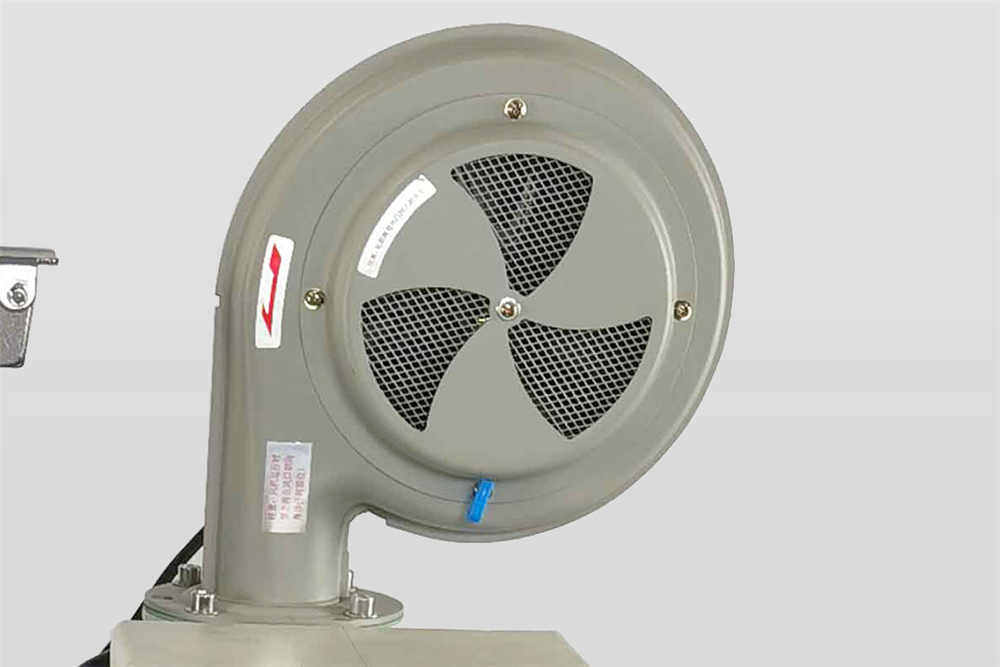

Fan System

The equipment features a curved design for the hot air pipes, which prevents powder accumulation at the bottom of electric heating pipes and reduces the risk of combustion.

Fan System

The equipment features a curved design for the hot air pipes, which prevents powder accumulation at the bottom of electric heating pipes and reduces the risk of combustion.

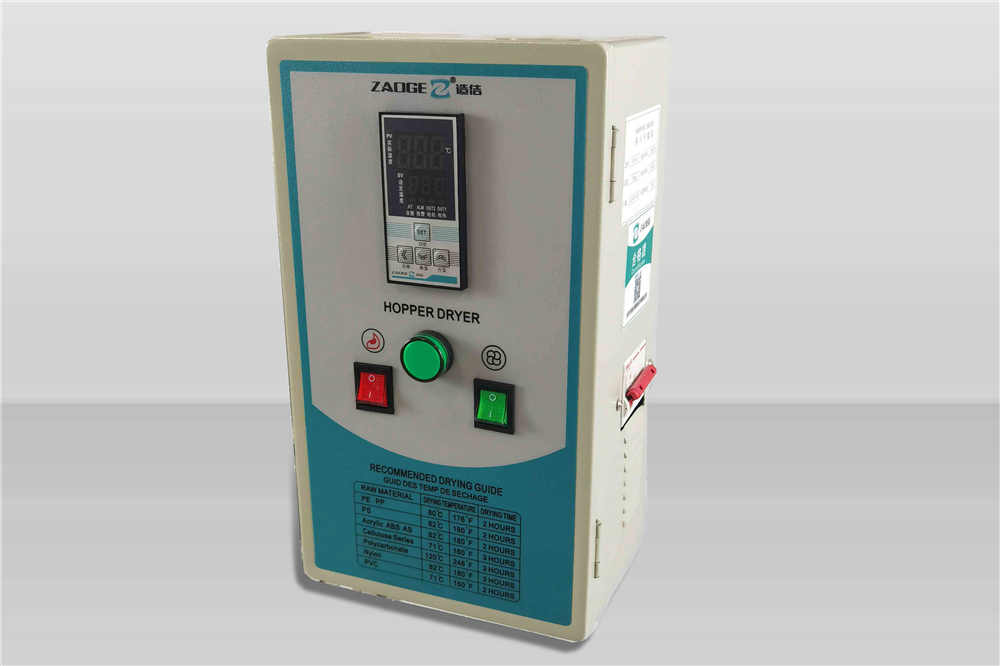

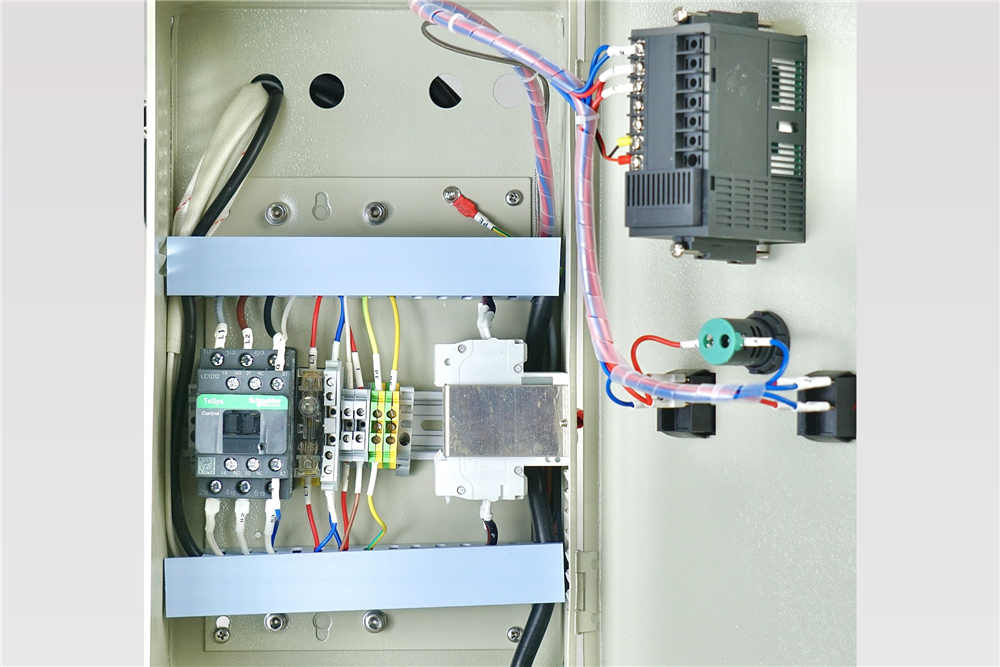

Control System

The equipment has a separated design for the material barrel and hopper, which allows for easy cleaning and quick material replacement.

Operational Safety

The equipment comes equipped with a demagnetization and over-temperature protection function that automatically cuts off the main power supply when the drying temperature exceeds the preset deviation value, ensuring safe operation.

Operational Safety

Dryer’s Applications

Automotive Parts Injection Molding

Communications Electronics Products

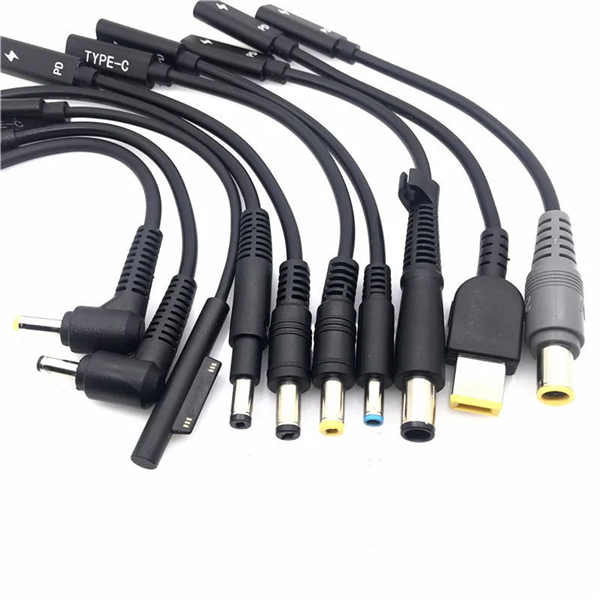

DC Power Cord/Data Cable Injection Molding

Fitness And Medical Molding

Household Electrical Appliances

Stationery Blow Molding

Specifications

Mode	ZGD-12G	ZGD-25G	ZGD-50G	ZGD-75G	ZGD-100G	ZGD-150G	ZGD-200G	ZGD-300G
Capacity	12KG	25KG	50KG	75KG	100KG	150KG	200KG	300KG
Power supply	1AC/N/PE/220V/50HZ	1AC/N/PE/220V/50HZ	3AC/N/PE/380V/50HZ	3AC/N/PE/380V/50HZ	3AC/N/PE/380V/50HZ	3AC/N/PE/380V/50HZ	3AC/N/PE/380V/50HZ	3AC/N/PE/380V/50HZ
Total power	1.87KW	3.6KW	4.65KW	5.15KW	6.7KW	9.2KW	12.3KW	15.3KW
Equipment current	8.5	16	7	9	12	15	18	23
Tube power	220V/1.8KW	220V/3.5KW	380V/4.5KW	380V/5KW	380V/6.5KW	380V/9KW	380V/12KW	380V/15KW
Fan power	220V/50HZ/75W	220V/50HZ/135W	220V/50HZ/155W	220V/50HZ/155W	220V/50HZ/215W	220V/50HZ/215W	380V/50HZ/320W	380V/50HZ/320W
Fan flange	100MM	120MM	120MM	120MM	143MM	150MM	190MM	190MM
Base dimensions	108*108	148*148	158*158	158*158	178*178	200*200	230*230	230*230
Safety device	Power off and alarm after over-temperature
Wooden frame size（mm）	694370	764683	854995	8955104	10263109	10767129	12083143	12994160
Equipment weight	34KG	40KG	40KG	46KG	60KG	80KG	100KG	140KG
