Double Wrist Plastic Granulator

Features:

● Power transmission system: Adopts high-torque gearbox, which is energy-saving when the motor outputs power.
Dedicated screw material tube design: According to the characteristics of recycled materials, a dedicated screw is designed to ensure that it can fully remove water and impurities such as waste gas.
The extruder is equipped with a pressure sensing device: When the pressure is too high, the warning light or buzzer will notify the need to replace the filter screen.
Applicable materials: Recyclable plastics such as TPU, EVA, PVC, HDPE, LDPE, LLDPE, HIPS, PS, ABS, PC, PMMA, etc.


Product Detail

Product Tags

Description

This equipment is suitable for granulating EVA, TPR, rubber PP, HDPE, LDPE, LLDPE, HIPS, PS, ABS, PC, PMMA, TPU, EVA and other recycled plastics. It adopts German reducer motor and high torque gear box, which effectively saves electricity up to 20%; the temperature control is accurate, the feeding speed is uniform, and the speed is extremely easy to adjust; the screw and barrel are made of imported materials and specially treated, which have good wear resistance and long service life; it adopts non-stop double column hydraulic screen changing, which is simple and convenient to operate, and is conducive to improving operation efficiency and production capacity.

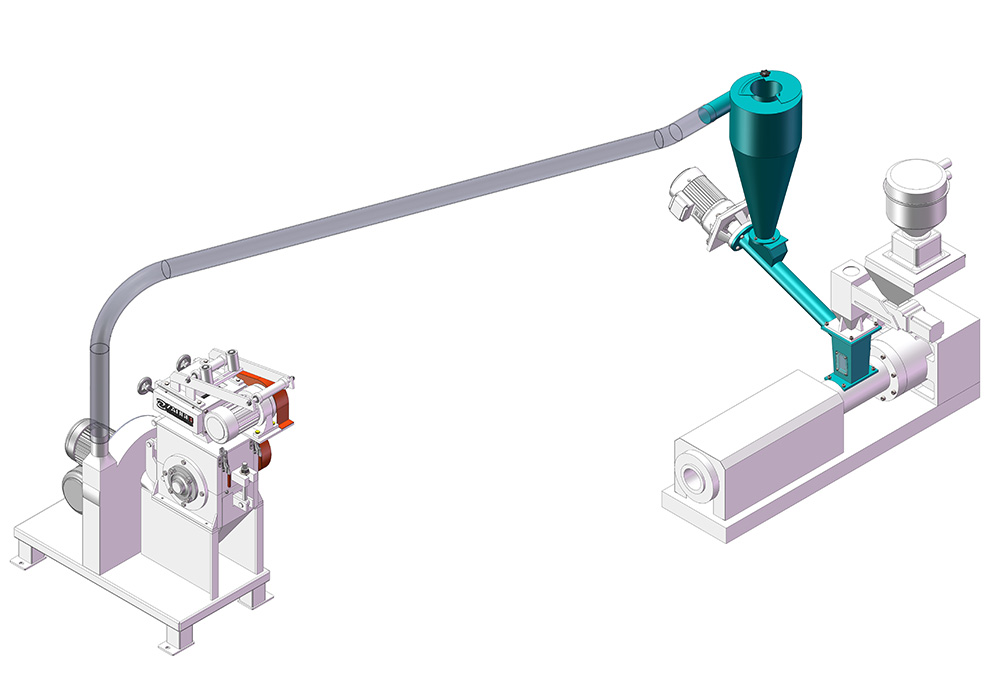

Plastic Edge Trim Crusher Recycling System For Film And Sheet

Description

This equipment is suitable for granulating EVA, TPR, rubber PP, HDPE, LDPE, LLDPE, HIPS, PS, ABS, PC, PMMA, TPU, EVA and other recycled plastics. It adopts German reducer motor and high torque gear box, which effectively saves electricity up to 20%; the temperature control is accurate, the feeding speed is uniform, and the speed is extremely easy to adjust; the screw and barrel are made of imported materials and specially treated, which have good wear resistance and long service life; it adopts non-stop double column hydraulic screen changing, which is simple and convenient to operate, and is conducive to improving operation efficiency and production capacity.

More Details

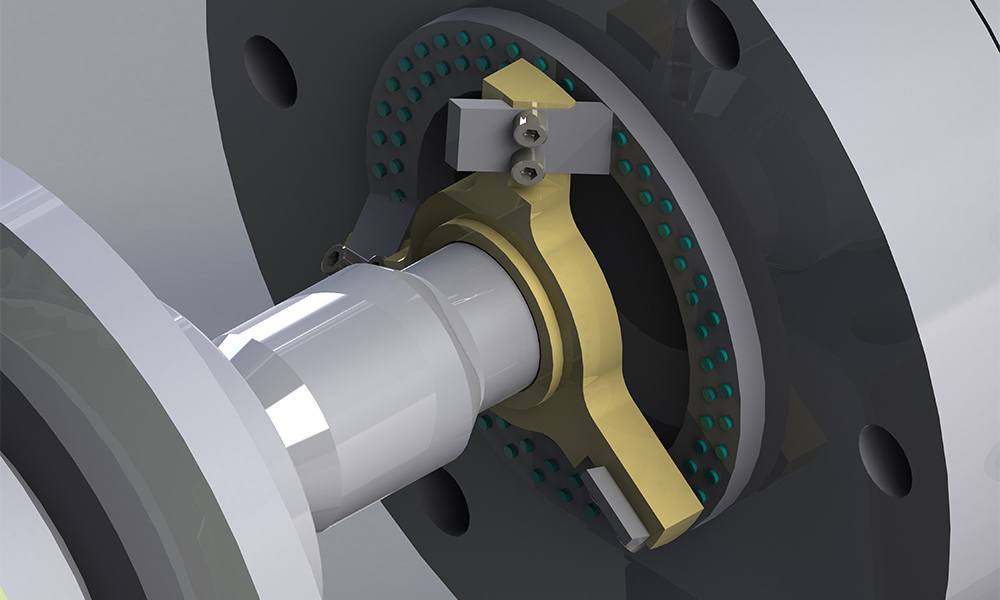

Die Head Cutting

Die Head Cutting

The material is transported from the screw to the die head for immediate cutting, resulting in less powder and the ability to control the size and shape of the particles, greatly improving production efficiency and accuracy.

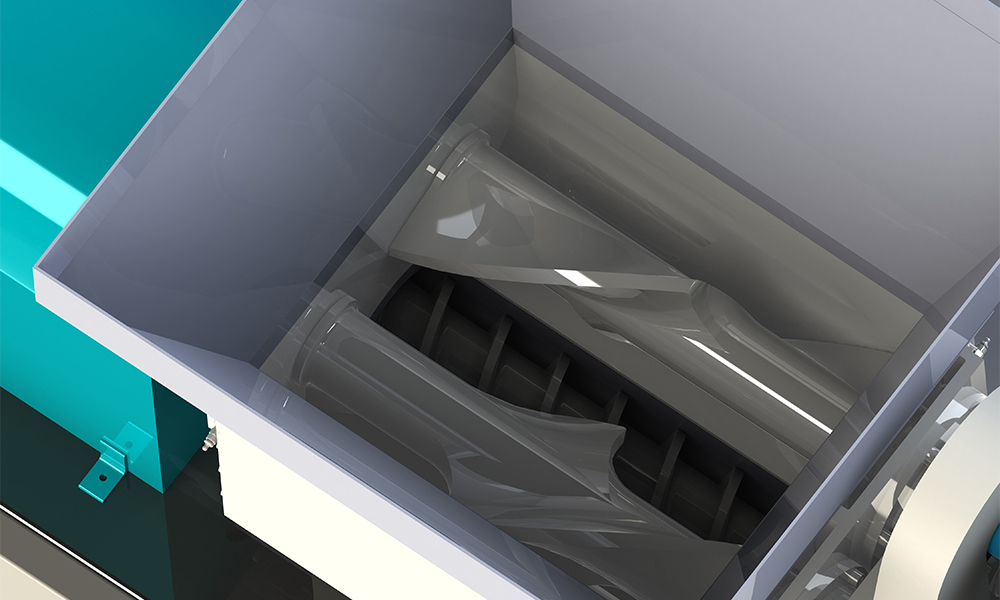

Double-Arm Discharging

With double-arm structure, its occupying small space, it can adjust the speed according to different materials and process, so that the materials are mixed in high speed rotation and made into powder, which not only improves the production efficiency, but also achieves the best granulation effect.

Double-Arm Discharging
Double-Arm Discharging

Double-Arm Discharging

With double-arm structure, its occupying small space, it can adjust the speed according to different materials and process, so that the materials are mixed in high speed rotation and made into powder, which not only improves the production efficiency, but also achieves the best granulation effect.

Screw And Nut

Screw And Nut

a high-precision machining process that enhances their load-bearing capacity, wear resistance, and stability during operation, reduces the likelihood of vibration and noise and ensures the transmission's forward direction and stability.

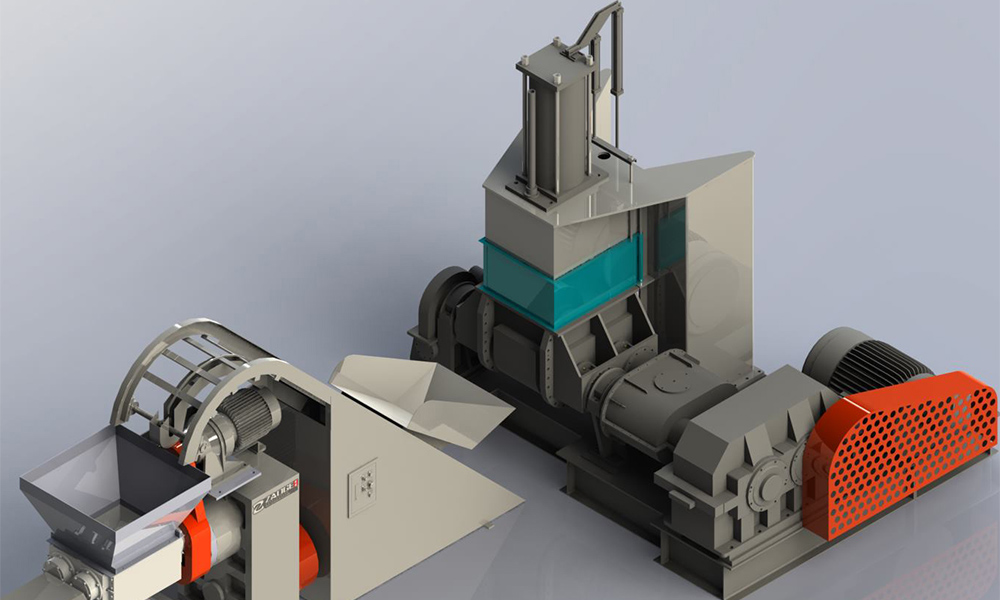

Internal Mixer

Utilizing a closed design, this machine fully mixes different materials at high speeds within the rotating mixer. This results in low energy consumption and fast, efficient mixing.

Internal Mixer
Internal Mixer

Internal Mixer

Utilizing a closed design, this machine fully mixes different materials at high speeds within the rotating mixer. This results in low energy consumption and fast, efficient mixing.

Granulator Applications

Double Wrist Granulator (6)

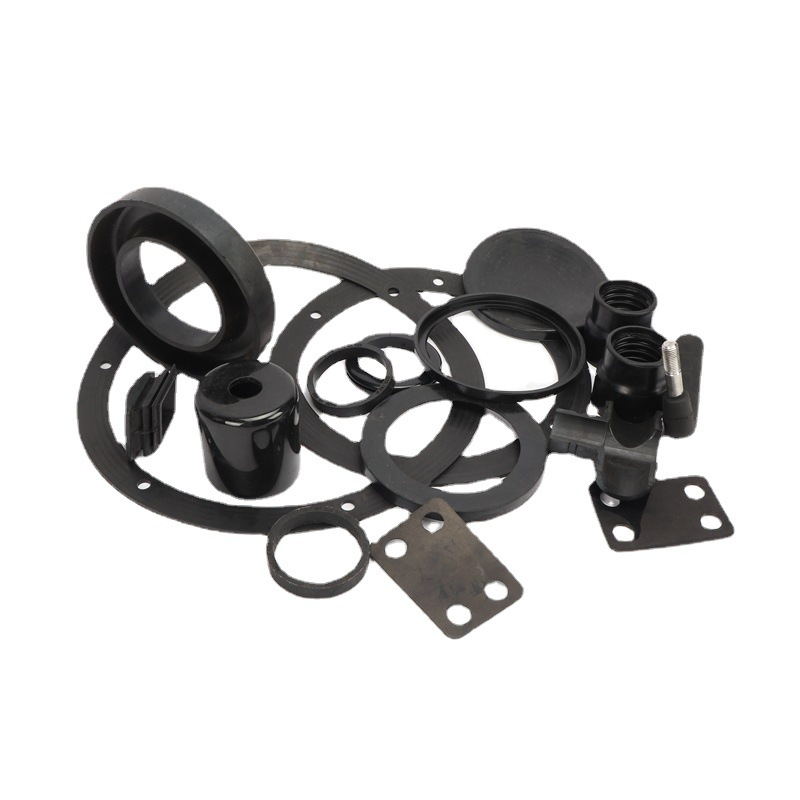

Rubber Products

Double Wrist Granulator (2)

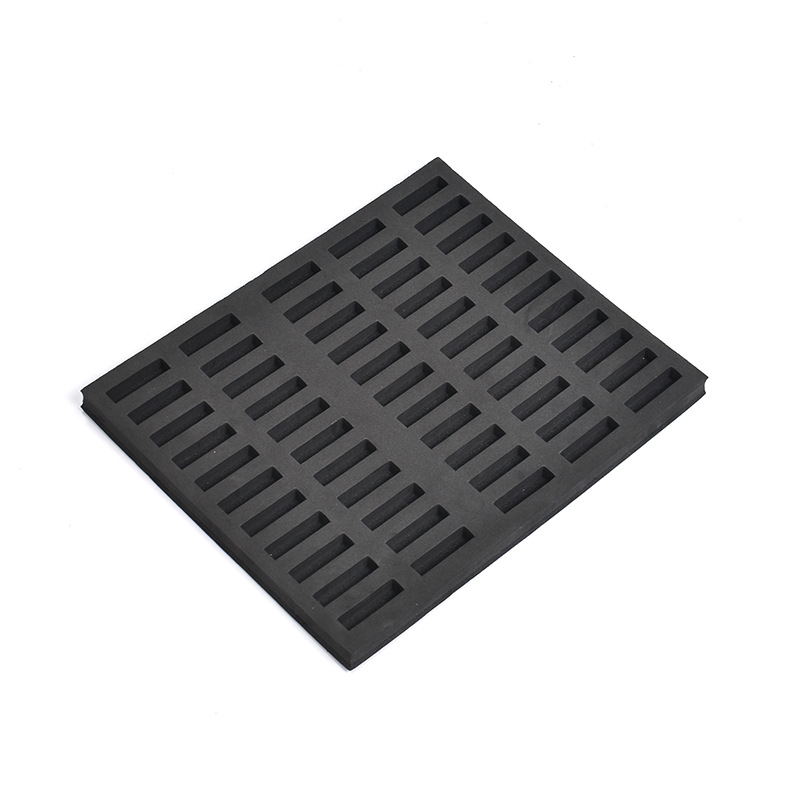

EVA Products

PVCTPUTPE rubber wire calendering

PVC Products

Double Wrist Granulator (3)

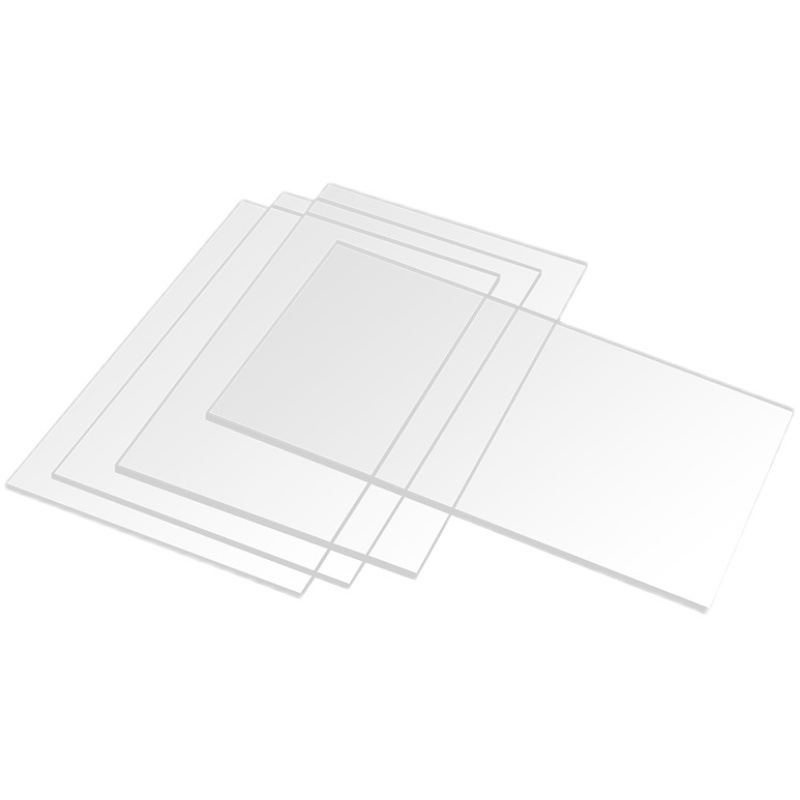

PMMA Products

Double Wrist Granulator (1)

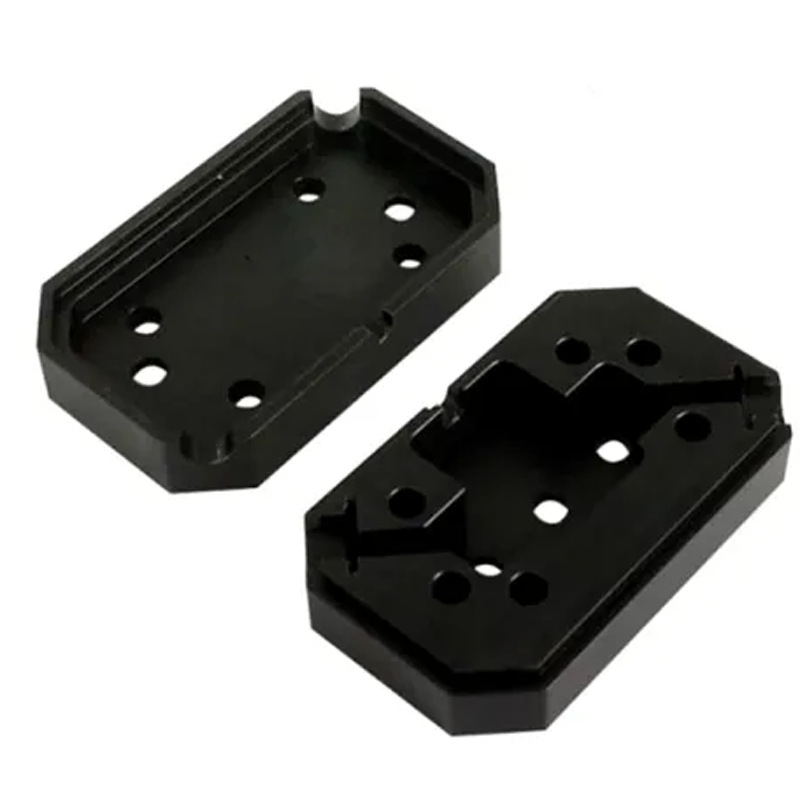

ABS Products

Double Wrist Granulator (4)

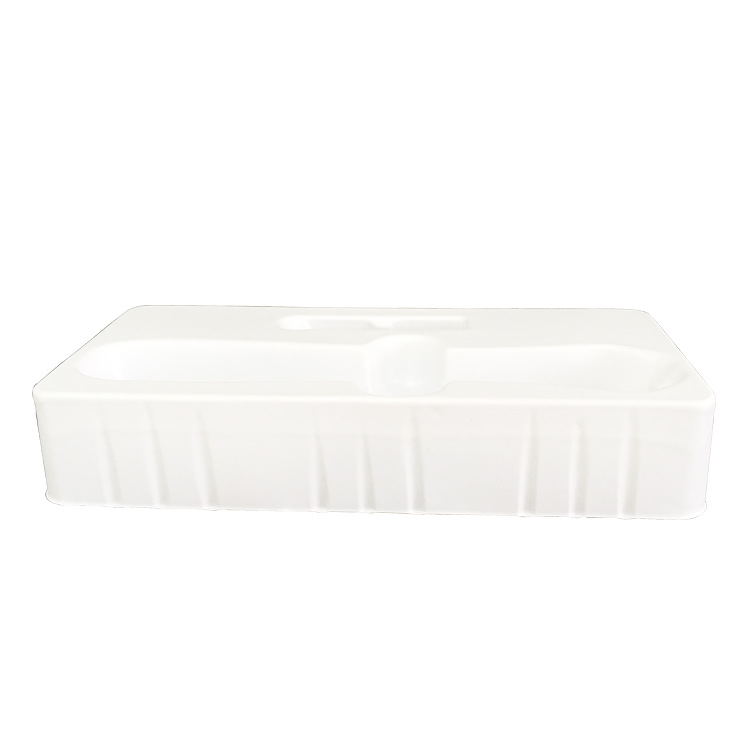

PS Products

Specifications

ZGDG series

Mode

ZGDG-85

(MATCH 20L)

ZGDG-100(MATCH 35L)

ZGDG-120(MATCH 55L)

ZGDG-150(MATCH 75L)

ZGDG-165(MATCH 110L)

ZGDG-180(MATCH 150L)

Main Screw Diameter

ф85mm

ф100mm

ф120mm

ф150mm

ф165mm

ф180mm

Screw lengthL/D

10:1

10:1

10:1

10:1

10:1

10:1

Drive Motor

25HP

30HP

40HP

50HP

60HP

60HP

Productivity

100~150kg/h

200~300kg/h

300~400kg/h

400~600kg/h

600~750kg/h

750~1000kg/h

Kneader Force Feed Power

5HP

7.5HP

7.5HP

10HP

10HP

10HP

Rotate Speed

35R.P.M

35R.P.M

35R.P.M

35R.P.M

35R.P.M

35R.P.M

Temperature Control

3 ZONES

3 ZONES

4 ZONES

4 ZONES

4 ZONES

4 ZONES

Barrel Cooling Device

FAN COOLING



Discharge

Diameter

3~5mm

3~5mm

3~5mm

3~5mm

3~5mm

3~5mm

Granulating Motor

2HP

2HP

3HP

3HP

3HP

3HP

Cooling Device

FAN COOLING OR WATER COOLING

Gear Box

OIL BATH LUBRICATION

Speed Variation

VARIABLE

Blower motor

3HPx4

3HPx4

3HPx4

5HPx5

5HPx5

7.5HPx5

Cooling Barrel

2~4 SETS

Storage Barrel Capacity

200kgs

600kgs

600kgs

1000kgs

1000kgs

1000kgs

Dimensions L*W*Hmm

3100x1650x1600

3350x1850x1950

3800x1800x1950

4450x1950x2050

4800x1950x2050

4800x1950x2050

Weight

2000kgs

2500kgs

3000kgs

3500kgs

4000kgs

2000kgs
