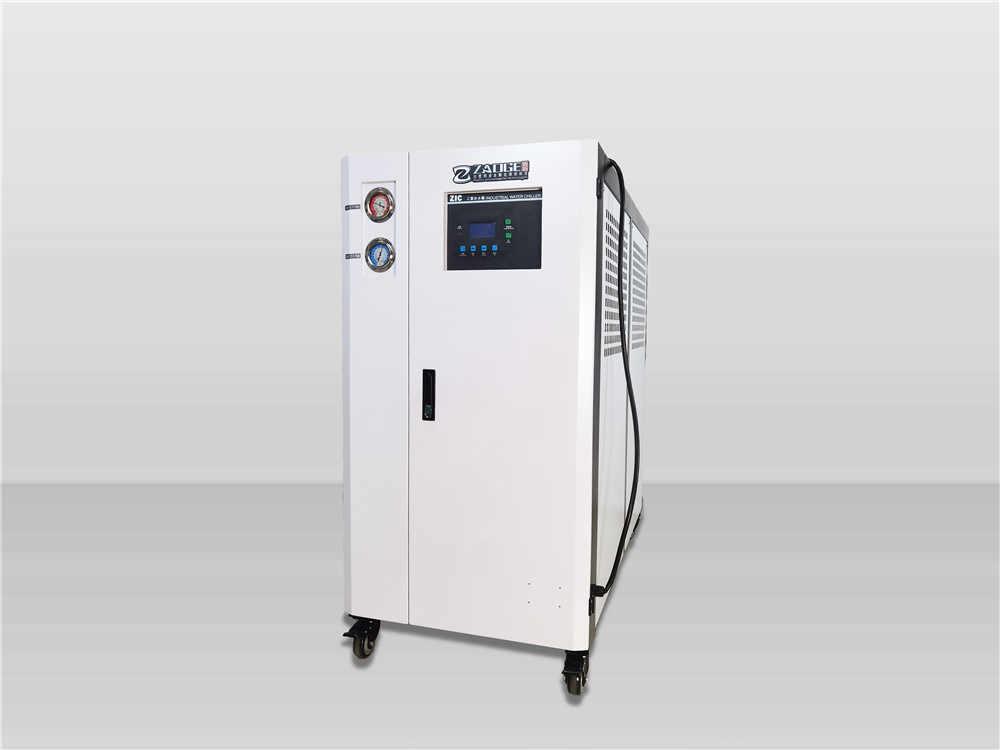

Air-Cooled Industrial Chiller

Features:

● Cooling temperature range is 7℃-35℃.
● Stainless steel insulated water tank with anti-freezing protection device.
● Refrigerant uses R22 with good refrigeration effect.
● The refrigeration circuit is controlled by high and low-pressure switches.
● Both the compressor and pump have overload protection.
● Uses Italian-made precision temperature controller with an accuracy of 0.1℃.
● Easy to operate, simple structure, and easy to maintain.
● Low-pressure pump is standard equipment, and medium or high-pressure pumps can be optionally selected.
● Can be optionally equipped with a water tank level gauge.
● Uses a scroll compressor.
● The air-cooled industrial chiller uses a plate-type condenser with excellent heat transfer and fast heat dissipation, and does not require cooling water. When converted to the European safety circuit type, the model is followed by “CE”.

Send email to us Inquiry Now

Product Detail

Product Tags

Description

The air-cooled industrial chiller is an efficient and reliable cooling device that can quickly reduce temperature and maintain stable temperature control. It is widely used in the cooling field of modern industry. This series of products are easy to operate and can accurately control the water temperature between -3℃ to +5℃, with a good cooling effect. It is equipped with various protective devices, such as current overload protection, high and low-pressure control, and electronic time-delay safety device, to ensure the safety performance of the product. It is built with a stainless steel insulated water tank that is easy to clean. This series of chillers can also be customized with acid and alkali resistance for a wider range of applications.

Description

More Details

Safety Devices

This machine is equipped with multiple safety protection devices, including overload protection, overcurrent protection, high and low voltage protection, temperature protection, cooling water flow protection, compressor protection, and insulation protection. These protection devices can effectively ensure the safety and reliability of the industrial chiller and ensure the normal operation of the production process. Regular maintenance is required when using an industrial chiller to ensure its normal operation and high efficiency.

Compressor

Panasonic compressors are an excellent compressor type commonly used in industrial chillers. They are highly efficient, energy-saving, low-noise, low-vibration, and highly reliable, providing stable and reliable cooling and refrigeration services for industrial production. At the same time, the simple and easy-to-maintain structure of Panasonic compressors reduces maintenance and replacement costs.

Compressor

High-low Pressure Switch

Industrial chiller water pipes require corrosion resistance, high-pressure resistance, and low-temperature resistance. The high and low-pressure switch is a common safety protection device that monitors refrigerant pressure changes to prevent equipment damage. Regular inspection and maintenance of water pipes and the high and low-pressure switch are important for ensuring the chiller's normal operation and high efficiency.

Evaporator

The evaporator of an industrial chiller is a key component for cooling and refrigeration. It uses efficient tubes and fins to quickly dissipate heat and lower the temperature while absorbing heat from the external environment through evaporation. The evaporator is easy to maintain, highly adaptable, and provides reliable cooling and refrigeration services for industrial production.

Evaporator

Chiller’s Applications

AC Power Supply Injection Molding

Automotive Parts Injection Molding

Communications Electronics Products

Cosmetic Bottleswatering Cansplastic Condiment Bottles

Household electrical appliances

Injection molded for Helmets and suitcases

Medical And Cosmetic Applications

Pump Dispenser

Specifications

mode	ZG-FSC-05A	ZG-FSC-08A	ZG-FSC-10A	ZG-FSC-15A	ZG-FSC-20A
refrigeration capacity	13.5KW	19.08KW	25.55KW	35.79KW	51.12KW
refrigeration capacity	11607	16405	21976	33352	43943
refrigerant	R22
compressor motor power	3.75	6	7.5	11.25	15
compressor motor power	5	8	10	15	20
cooling fan flow（l/min）	3900	7800	9200	12600	18900
fan blade diameter（mm）	400×2	450×2	500×2	500×3	500×4
voltage	380V-400V 3PHASE 50Hz-69Hz
water tank capacity	50	85	85	150	180
water pump power（kw hp）	0.37	0.75	0.75	1.5	1.5
water pump power（kw hp）	1/2	1	1	2	2
water pump flow rate（l/min）	50-100	100-200	100-200	160-320	160-320
safety equipment	high/low pressure switch oil pressure switch safety overheat control fuse compressor built-in thermostat
current consumption during operation	9	13	15	27	38
insulation material	foam tape rubber hose
size（D×W×H）	1350×650×1280	1500×820×1370	1500×820×1370	1900×950×1540	1900×950×1540
net weight	315	400	420	560	775
